Reverse Engineering an Akaso EK7000 Camera

Introduction

My daughter wanted to take photos at camp this summer, which incorporated a multi-day portaging/canoe trip, and no phones allowed. I picked up a cheap action camera on Amazon, an Akaso EK7000: Amazon link, Akaso link. When she got back, she dumped all her photos from its MicroSD card, and then it was available for me to play with!

It has a wi-fi mode, and sets itself up as a wi-fi hot spot - it is designed such that you connect to it with your phone, and control it with the “Akaso Go” app. Connecting to it with my laptop, I could guess some basic controls (192.72.1.1 is its IP, /index.html reveals some basic information). But I can’t see or guess any useful controls. Ultimately, I want to download photos and view live video on my laptop - like I can with the phone app.

Decompiling the Android App

I decided to start looking at the Akaso Go app - I had never done this before, but I got the .APK/Android app from a site called apkpure.com. After reading a few tutorials, I decided to try and open it with the jadx decompiler. I was surprised with how much useful information was in the decompiled source.

I wanted to discover the HTTP GET commands for pulling photos off the camera. I tried searching for:

• ek7000 (the app supports multiple Akaso cameras)
• cgi-bin

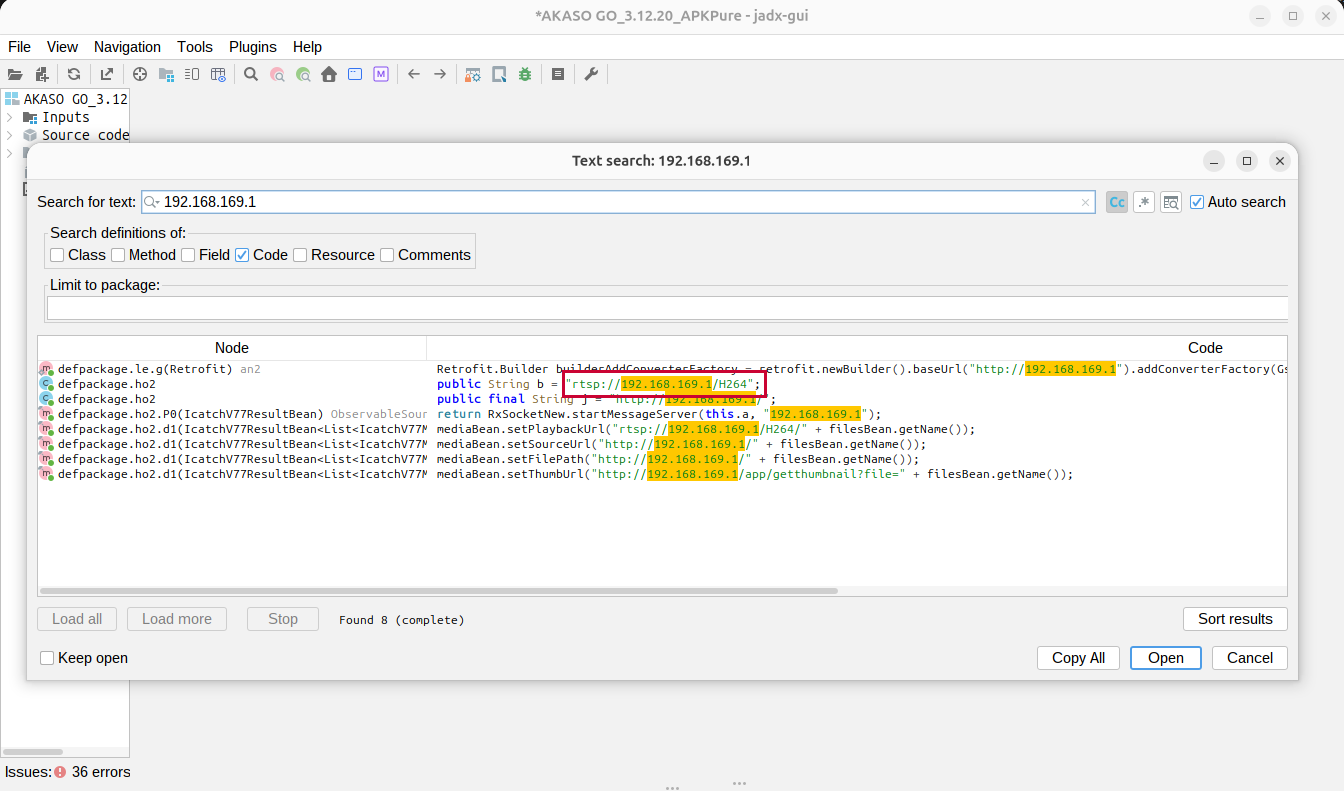

• 192.72.1.1

Whenever I found a URL in the source, I’d put into a browser and tried to see what the camera would return.

But I was not able to find how the app pulled photos from the camera.

Creating A Fake Camera

So I decided to try something else. I setup a Raspberry Pi as a wi-fi hot spot, with a configuration that matched the Akaso EK7000. On Raspbian Bookworm:

1

sudo nmcli device wifi hotspot ssid iCam-AKASO_C_1e96 password 1234567890

To match the IP configuration of the Akaso, the [ipv4] section /etc/NetworkManager/system-connections/Hotspot.nmconnection has to be modified as follows:

1
2
3

[ipv4]
address1=192.72.1.1/24,192.72.1.1
method=shared

Disable and then re-enable the hot spot:

1
2

sudo nmcli device disconnect wlan0
sudo nmcli device wifi hotspot ssid iCam-AKASO_C_1e96 password 1234567890

I then wrote a simple NodeJS application, “fakecam.js”, that logged and could respond to HTTP requests. I gradually expanded the NodeJS app to respond like the camera did, until I learned all the important HTTP requests as follows:

1. Connect Akaso Go app to Pi.
2. Take the app as far as it will go before it stops. Log all HTTP requests
3. Connect laptop to the Akaso Camera, run HTTP requests from step 2
4. Update the “fakecam” app to respond to HTTP requests from step 2, as the Akaso camera did
5. Restart at step 1

After a few iterations, my fakecam.js app progressed to the point where I could try to open the camera gallery in Akaso Go, and I discovered the HTTP calls for those commands. It might be useful as a starting point for reverse engineering the protocol between other apps & devices - it can be downloaded here: fakecam.zip download.

Retrieving Photos and Videos from the Akaso EK7000

Here’s how to retrieve photos and videos from the Akaso EK7000’s wi-fi hotspot.

1. Connect to the Akaso EK7000 hot spot with your laptop
2. From a browser, load the photo file list from this URL: http://192.72.1.1/cgi-bin/Config.cgi?&action=dir&format=all&count=10000&from=0&property=Photo
3. From a browser, load the video file list from this URL: http://192.72.1.1/cgi-bin/Config.cgi?&action=dir&format=all&count=10000&from=0&property=Video

This returns XML files that look like this:

1
2
3
4
5
6
7

<file>
<name>/SD/Photo/IMG240127-000045F.JPG</name>
<format size="5120x3840">jpeg</format>
<size>3145728</size>
<attr>RW</attr>
<time>2024-01-27 00:00:45</time>
</file>

4. You can then retrieve individual files by their name, like http://192.72.1.1/SD/Photo/IMG240127-000045F.JPG

Streaming video from the Akaso EK7000

This turned out to be easier than I expected. Running an nmap network scan against the device early in the process, I saw that network port 554 was open on the device, which nmap identified as for RTSP (Real-Time Streaming Protocol). I searched the disassembled Akaso Go source code for RTSP, and found the following URL:

rtsp://192.72.1.1:554/liveRTSP/av4

I opened this URL as a network stream in VLC, and it worked! With another iteration of my fakecam.js app, I uncovered the URL for setting the stream resolution and frames per second:

http://192.72.1.1/cgi-bin/Config.cgi?action=set&property=Videores&value=1080P60 - where 1080P60 sets the video stream for 1080P, 60 frames per second.
